Data Collector

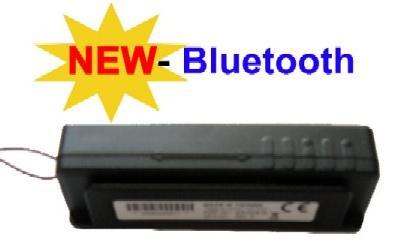

MINI-400-B

GENUINE!

Wireless interface, allowing it to send magstripe data to PC at the real time! It works with any Bluetooth adapter (Dongle) in the market. It is a rechargeable battery-powered portable magnetic swipe reader, which is specially designed for magnetic stripe data collection at anytime and anywhere without computer.  Data is read from the card and kept into the memory then downloaded to the computer.



Features

  • Class 2 Bluetooth wireless interface
  • 512K bytes memory for storing 2000 data
  • Triple track version can collect all 3 tracks data
  • BlueTooth/USB  2 in 1 interface
  • Rechargeable battery can last up to 72hr's
  • It works with any Bluetooth adapter (Dongle) in the market
  • Battery powered and low battery indicated
  • Wireless range: Up to 26.25 feet (8 meters), depends on the area
  • Charged by power adapter (5v /110~240v) or USB only 1 hour to Full
  • Time stamp shows date and time with every transaction
  • Data downloadable to the computer via Blue Tooth or USB
  • Auto Power Off /Switch Control/Really Control set by user
  • Transfer data to MSR206 directly
  • Password Protection defends user
  • Bi - Directional
  • Software easy to use

Applications

  • Any movable data collection (Trade shows, Racing events)
  • Point of sales (Credit card data collection)
  • Law enforcement (DMV card)
  • Attendance (Student ID, Membership card)

Specification

Memory:

512K, approximately 2000 Records

ISO Standard:

Track 1,2 and 3

Power:

3.7v  220 mAH  Rechargeable Battery

Time Stamp:

Date: YY/MM/DD ( 2005/04/11 => April 11, 2005 )
Time: HH:MM:SS (19:08:35 => 7:08:35pm)
Week: Sun.=>1, Mon.=>2, Tues.=>3 Wed.=>4, Thurs.=>5, Fri.=>6, Sat.=>7
Example: 2005/04/11 19:08:35 2 => April 11, 2005,  7:08:35pm, Monday

Speed:

Card speed through the unit may vary from 3 ~50 ips

Interface:

RS-232, Half-Duplex. 8N1, 9600 bps

Weight:

1.7 oz

Environment:

Working Temp: 0~55 Deg. C
Storage Temp: -10~55 Deg C
Humidity: 10~90% Relative

Dimensions:

8.0cm (L) x 1.5cm (W) x 2.5cm (H)
3.25in (L) x 0.75in (W) x 1.0in (H)



  MINI-400B

Mini400B is built with Bluetooth and USB interface Portable Data Collector.

Wireless interface, allowing it to send magstripe data to PC at the real time! It works with any Bluetooth adapter (Dongle) in the market. It is a rechargeable battery-powered portable magnetic swipe reader, which is specially designed for magnetic stripe data collection at anytime and anywhere without computer.  Data is read from the card and kept into the memory then downloaded to the computer.

  Inquire
 $595.00




Besides Credit card other payment methods available from Shopping Cart



Secure Socket Layer

We ship worldwide
