 Read & Write
New Items
!!
|
 CARDMAN
3021 |
|
|
The
CardMan® 3021 offers all the
trusted performance of OMNIKEY readers
in a new and fancy form factor. This
handy USB reader is the ideal choice
for large-scale deployments with
any type of contact smart card or
application software.
|
|
|
| ACR-83 |
|
|
Full
MIFARE® functionality
Compatible with Mifare® cards, and ISO 14443 A card
Read and write functionality
High-speed transactions
Antenna included
| $CALL |
|
|
|
|
|
| ACR-122 |
|
|
Full
MIFARE® functionality
Compatible with Mifare® cards, and ISO 14443 A card
Read and write functionality
High-speed transactions
Antenna included
| $78.00 |
Available
in May |
|
|
|
|
UIC 680 PayPass™/ExpressPay™ OEM Module |
 |
Add-on Peripheral to POS terminal
interface options:
RS-232 with Pass-Thru
USB HID
Keyboard Wedge
Support AmericanExpress®
ExpressPay™, MasterCard® PayPass™ and Visa®
contactless payment application.
| $138.00 |
BACKORDER |
|
|
|
|

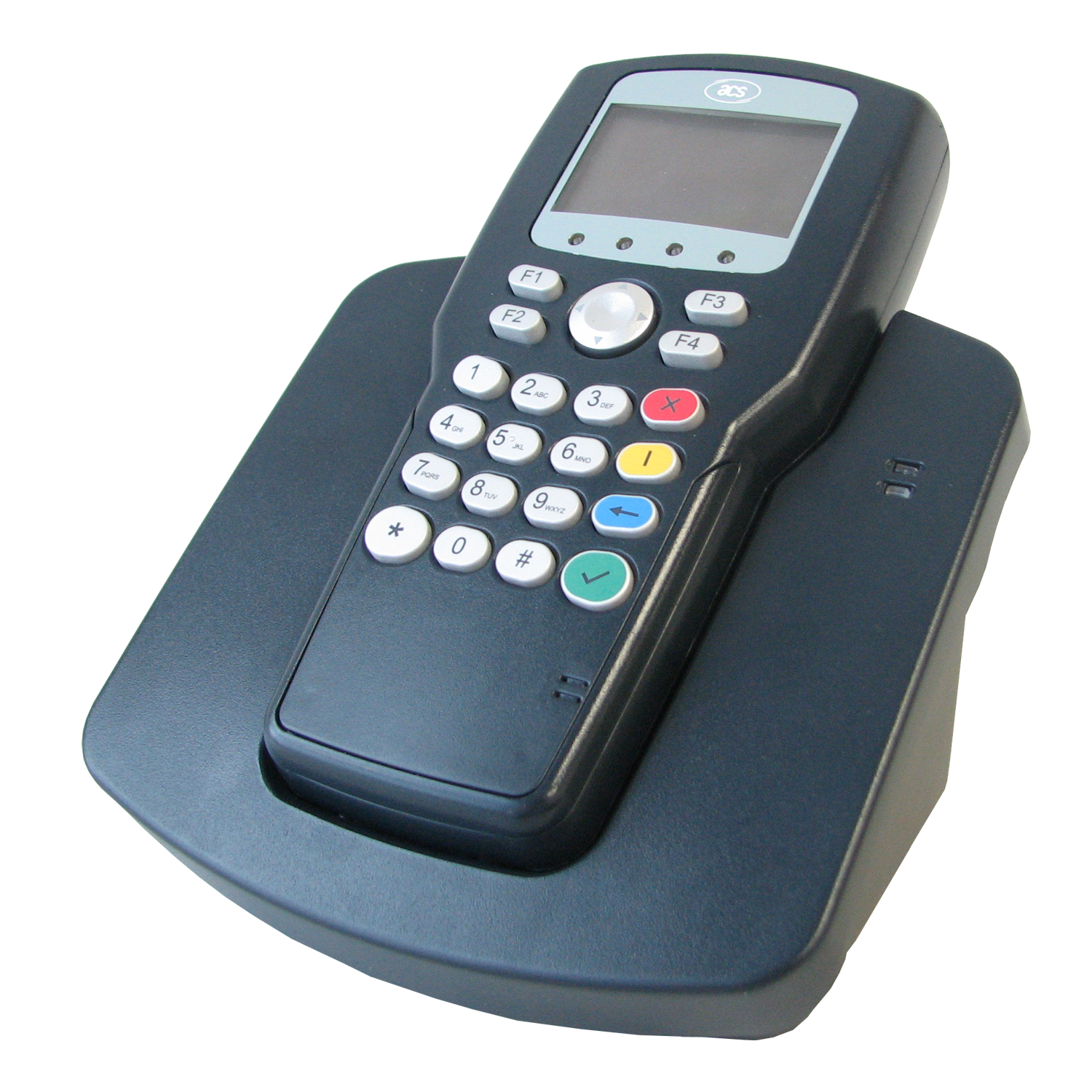

ACR-88 |
 |
ACR88 is a versatile handheld
portable smart card reader, having a built-in keypad, LCD display,
bi-color LED and buzzer features. It can also host the feature
of non-volatile memory to give better support to your system.
In addition, its onboard memory enables future firmware and application
enhancements that guarantee against obsolescence.
|
|
|
CARDMAN 5121 RFID |
 |
The CardMan 5121 is a dual
interface PC-linked reader that will read/write to both a 13.56
MHz RFID contactless smart card and virtually any contact smart
card. The dual interface feature economically supports end-user
environments where both contactless and contact smart card technology
may be in use.
|
|
|
CARDMAN 5125 PROX |
|
|
The CardMan® 5125 supports
125 kHz HID PROX technology while providing ISO 7816 and EMV
(Europay, MasterCard, Visa) support for contact cards. It is
the ideal device for HID PROX-based contactless physical access
technology solutions as well as all contact-related applications.
|
|
|
CARDMAN 5321 RFID |
 |
The CardMan® 5321 represents
the ideal combination of contact and contactless technology in
a single device. The housing design is optimized for advanced
user convenience in contactless applications.
|
|
|
OMNIKEY READER BOARDS |
 |
The Smart@Link chip set is
the core of most OMNIKEY readers. The chip set is pre-certified
for HBCI and EMV whereas the drivers are already certified for
Microsoft® Windows WHQL. Leverage our know-how to implement
reliable smart card reader technology in your own device.
|
|
|
ACR-38U-CCID |
 |
The ACR38U-CCID offers a driverless
solution saving the user the hassle of driver installation and
driver-system compliance checking. This CCID compliant smart
card reader/writer is a USB full speed device, which is very
simple to use and install.
|
|
|
ACR-38T |
 |
The ACR38T smart card reader/writer
is a USB full speed device which is the interface for the communication
between a computer and a smart card. It is designed for PC environment,
ultimate smart card peripheral for a PC.
|
|
|
ACR-38K Keyboard |
 |
The ACR38K Multimedia Keyboard
offers you with specialized keyboard setting, accessing every
function in just one key-press, plus a classy multimedia controller.
This package also comes with a card reader that enables you to
easily implement smart card-based systems. The ACS smart card
readers utilize the latest advancement of microchip technology,
that brings you high security for your confidential files in
a convenient and easy to carry microchip smart card. The software
drivers and tools in this package will enable you to write files
to your smart card and to read the contents.
|
|
|
ACR-38ET Dual Key 2 |
 |
The ACR38ET DualKey2 has innate
contactless card functionalities and requires simply a SIM-sized
smart card for contact card functionalities. It is an extension
of the ACR38T SIMTracker II. It has full ACR38T functionalities
with contactless value-added feature.
|
|
|
ACR-38DT Dual Key |
 |
ACR38DT offers both solutions
based on SIM-sized combi smart card (contactless and contact
card) for logical and physical access control. The ACR38DT contactless/contact
dual-interface token is extension of ACR38T Plug-in Card Reader.
It has full ACR38T functionalities with contactless value-added
feature.
|
|
|
ACR-38F |
 |
The ACR38F is the ideal solution
for easy integration of a smart card reader into the desktop
environment. It uses the same electronic circuit as the ACR38
, and has the same versatility and cost-effectiveness that have
always been associated with ACS smart card readers. Using the
USB interface, it uses the PC's internal power supply, and can
be configured in several ways to suit the customer's preference.
|
|
|
ACR-38 |
 |
Electronic Commerce
Full speed interface to PC with simple command structure
Read and write all microprocessor cards with T=0, T=1 protocolsSupports
SLE 4418/28/32/42 memory cardsSupports most common memory-based
smart cards, including I2C bus protocol cards (from 1K
bits up to 1024K bits) and secure memory cards (Atmel AT88SC153
and AT88SC1608)
Support 1.8V. 3V and 5V MCU cards
|
|
|
AET-60 BioCARDKey |
 |
Integrated fingerprint scanner/smart
card reader
Full-speed USB interface
Requiring no additional power suppl
High-resolution 508 DPI imaging
Utilizes CMOS active capacitive pixel sensing technology, resulting
in high quality fingerprint images in any environment
Large active sensor size - 12.8mm x 18.0mm
Capture rate - 14fps
|
|
|
AET-63 BioTRUSTKey |
 |
Integrated fingerprint scanner/smart
card reader
Full-speed USB interface
Requiring no additional power suppl
High-resolution 508 DPI imaging
Utilizes CMOS active capacitive pixel sensing technology, resulting
in Encrypted finger print template stored inside smart card
Session key generation among smart card, BioTRUSTKey Processor
and host computer
The template extraction and matching algorithms run within the
device itself - not in the PC
Large active sensor size - 12.8mm x 18.0mm
|
|
|
ACR-120 |
 |
Full MIFARE® functionality
Compatible with Mifare® cards, and ISO 14443 cards
Read and write functionality
High-speed transactions
Antenna included
|
|
|
ST-10 IF |
 |
Electronic Commerce
Hi-Reliability Assembly Type with RS-232C Interface
ISO/IEC7816 T=0, T=1
|
|
|
ST-20 |
 |
CAT and POS Vending Machines
Manual Insert
Hi-Reliability Assembly Type, Soft Landing contact 1 million
passes
ISO/IEC7816
|
|
|
ST-20 IF |
|
|
CAT and POS Vending Machines
Manual Insert
Hi-Reliability Assembly Type, Soft Landing contact 1 million
passes
ISO/IEC7816 T=1
RS-232C Interface
|
|
|
ST-60 IF |
 |
Smart Card, Motorized
Hi-Reliability Ultra compact size with RS-232C Interface
ISO/IEC7816 T=1 Protocol
|
|
|
ST-100 |
 |
Electronic Commerce
Hi-Reliability, Port powered, RS-232C Interface
ISO/IEC7816 T=0, T=1
|
|
|
ST-600 |
 |
Smart Card, Motorized
Hi-Reliability Ultra compact size with RS-232C Interface
ISO/IEC7816 T=1 Protocol
|
|
|
DT-3000 RS232 |
 |
Serial/RS232 Port - 9 pin
Power drawn from PS/2 port
Seamless autonegotiation for the communication between the PC
and the reader up to 57.6 Kbps
|
|
|
DT-3500 USB |
|
|
Universal serial bus (USB)
- USB spec. 1.1 full speed device
Advanced power management
EMV level 1 Certified
|
|
|
ACR-30 Series |
ACR-30
ACR-30 EMV |
Electronic Commerce
Hi-Reliability, Port powered, RS-232C or USB Interface
Supports microprocessor (MCU) based cards with ISO-7816 T=0 or
T=1 protocol and popular memory cards
ACR-30EMV is PC/SC and EMV Certified
|
|
|
ACT-30 |
 |
The ACT-30 is one of the world's
smallest USB plug-in smart card readers. Fully compatible with
the ACR-30U, it is ideal for access control, PC security, authentication,
and GSM applications
|
|
|
LT-4000 |
 |
PCMCIA Interface Smart Card
Reader/Writer
| | | | | |
